Quick Details

  • Condition: New
  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: CNB
  • Model Number: CPCD200
  • Type: Powered Pallet Truck
  • Power Souce: Diesel Engine
  • Rated Loading Capacity: 20000kg
  • Max. Lifting Height: 6000mm
  • Min. Lifting Height: 3500mm
  • Fork Length: 2200
  • Fork Width: 220mm
  • Overall Dimensions: 6000*2250*4000
  • Certification: ISO9001
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Engine Brand: Cummins
  • Engine Model:: 6BTAA5.9-C190
  • Engine Rated Power: 142kw
  • Cabbin: Yes
  • Air Conditioner: Yes
  • Overload Cpacity: 25000kg
  • Transmission: Fluid Torque Converter
  • Stage FWD/RVS: 2/2
  • Weight: 25000kg
  • Color: Red or as requirements

Packaging & Delivery

Packaging Details Standard export packaging
Delivery Time 3-4 weeks



Product Description

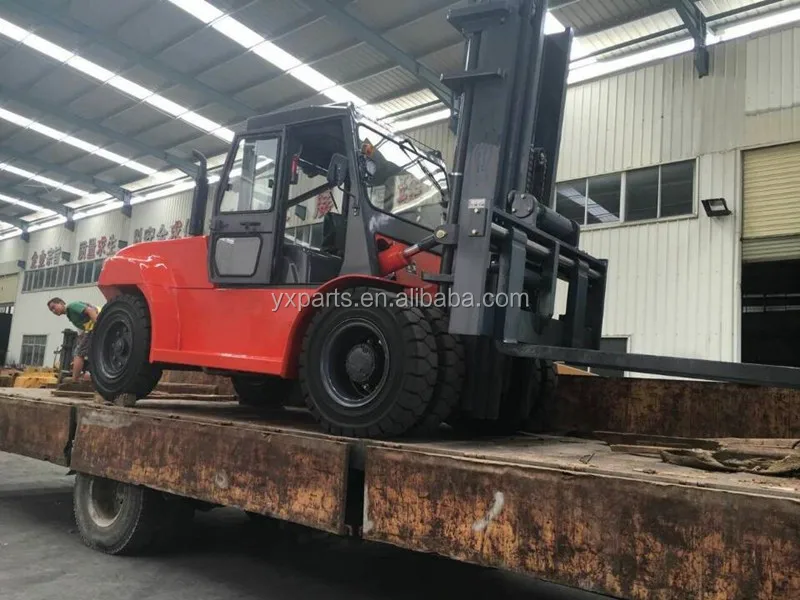

 20 tons Heavy Duty Forklift  Truck

More than ten years of developing and producing experience in heavy duty forklift,expecially stone an d mining specilized model, which require more durability under bad and overload conditions.

We have very professional experience in studying and producing heavy duty forklift (7-30tons) for stone,mine industries.



Applications:

The CPCD200 offers a new design in combination with improved economics and unmatched performance.









ItemSpecificationUnitParameter
General1Model CPCD200
2Power Type/model Diesel
3Rated CapacityKg20000
4Load Centermm900
Dimensions5Lift Heightmm3500
6Fork Size(LxWxT)mm2200×220×100
7Fork Spread(outside)(Min./Max)mm600/2260
8Mast Tilt Angle(F/R)deg6·/12·
9Fork Overhangmm910
10 Length without forksmm6000
11Overall Widthmm2550
12Mast Lowered Heightmm3480
13Overhead Guard Heightmm3300
14Outer turning Radius mm5600
Performance15Speed(Unload/Load)Travelkm/h30/26
16Liftingmm/s300
17Max.gradeability(Load)%20
18Max.drawbar pull(Load)KN160
19service Weightkg25000
Wheels&Tires20TireFront 4×12.00-24-20PR
21Rear 2×12.00-24-20PR
22TreadFrontmm1850
23Rearmm2130
24Wheelbasemm4050
25Ground Clearance(Under mast)mm300
Power&    Transmission      26BatteryVoltage/Capacity(5HR)VA/h2×12/120
27EngineModel 6BTAA5.9-C190
28Manufacture CUMMINS
29Rated OutputKw142
30Rated TorqueN.m800
31No.Of Cyinder 6
32Bore*strokemm102*120
33DisplacementL5.9
34TransmissionsManufacture YQXD200
35Type Fluid TorqueConverter
36StageFWD/RVS 3/3
 37Operating PressuteMpa19





Key spare parts:

We apply the high standards power model and global key parts to guarantee the total performance even in sever conditions.



Packaging & Shipping







Our Services

Our services:

Welcome OEM;

We can design as customer's requirement;

Provide whole solutions from production to handle.

Company Information

Our factory is located in Xiamen,China.With rich pool of talent,CNB is founded with a clear vision in providing the total solution and fullfilling customer's needs.CNB enhances it's technological strength with various research and development to always be ahead,and it has become the backbone of the company's growth.These elements have always been CNB'S culture to drive the company forcontinuous improvement and bring CNB towards greater height.
